In the design and construction of industrial plants or infrastructure, Steel Grating is a vital component used for walkways, drainage covers, and parking areas. However, the most common challenge for engineers and contractors is: “How do we select a grating that ensures safety without over-inflating costs?” Choosing an improper specification can lead to structural deflection or, worse, serious safety hazards in the workplace.
Key Engineering Factors for Load Capacity Selection
1. Differentiating Load Types
Understanding how weight is applied to the surface is the first step in specification:
- Uniform Live Load (U): This refers to weight distributed evenly across the entire surface area, such as personnel walkways. Standard requirements typically range from 300–500 kg/m².
- Concentrated Point Load (C): This is weight applied to a specific, localized point, such as heavy machinery legs or vehicle tires. This requires a significantly higher Bearing Bar strength compared to uniform loads.
2. The Critical Role of Clear Span
The Clear Span (the distance between support beams) is a primary variable in structural integrity. As the span increases, the load-bearing capacity decreases exponentially. If a project requires a longer span, engineers must increase the depth or thickness of the Bearing Bars to maintain safety standards and prevent excessive deflection.
3. Selecting Bearing Bar Dimensions
Choosing the right bar size is a balance between utility and weight:
- Standard (e.g., 25×3 mm): Ideal for general personnel walkways and light-duty applications.
- Heavy Duty (e.g., 32×5 mm or 50×5 mm): Required for areas with vehicular traffic

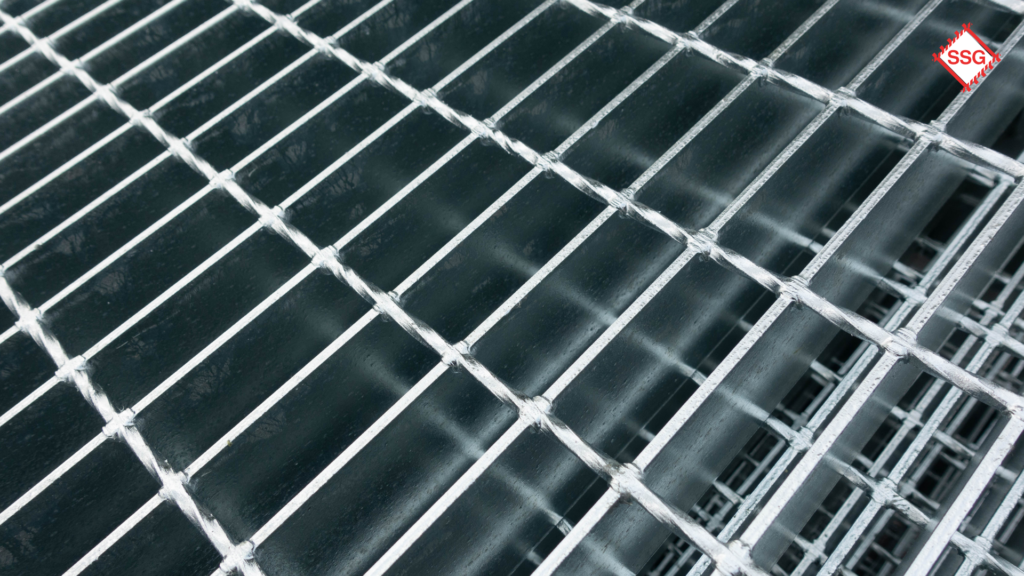

High load capacity must go hand-in-hand with corrosion resistance. At SSG, our gratings are hot-dip galvanized according to ASTM A123 standards, protecting the steel from rust for over 50 years in standard or high-humidity environments. Investing in high-quality galvanized grating is a smart long-term strategy, as it drastically reduces maintenance costs and the need for premature replacements.
