SSG’s grating can be fixed on the supporting members by the steelwork erector with clips or by tack welding.
It is important to note that when there is no lateral restraint provided by the support structure, a minimum of four clips per panel must be used to restrain floor panels.
Where larger panels are to be fixed it is advisable to use extra clips on any available intermediate supports.
| Recommended Bolt For Clip | ||
| Depth of Bearing bar | Length Of Bolt | |
| SC1 Type | SC2 Type | |
| 20 mm. To 25 mm. | 45 mm. | Substract 5 mm. from Depth of Bearing Bar |
| 30 mm. To 45 mm. | 65 mm. | |
| 50 mm. To 65 mm. | 80 mm. | |

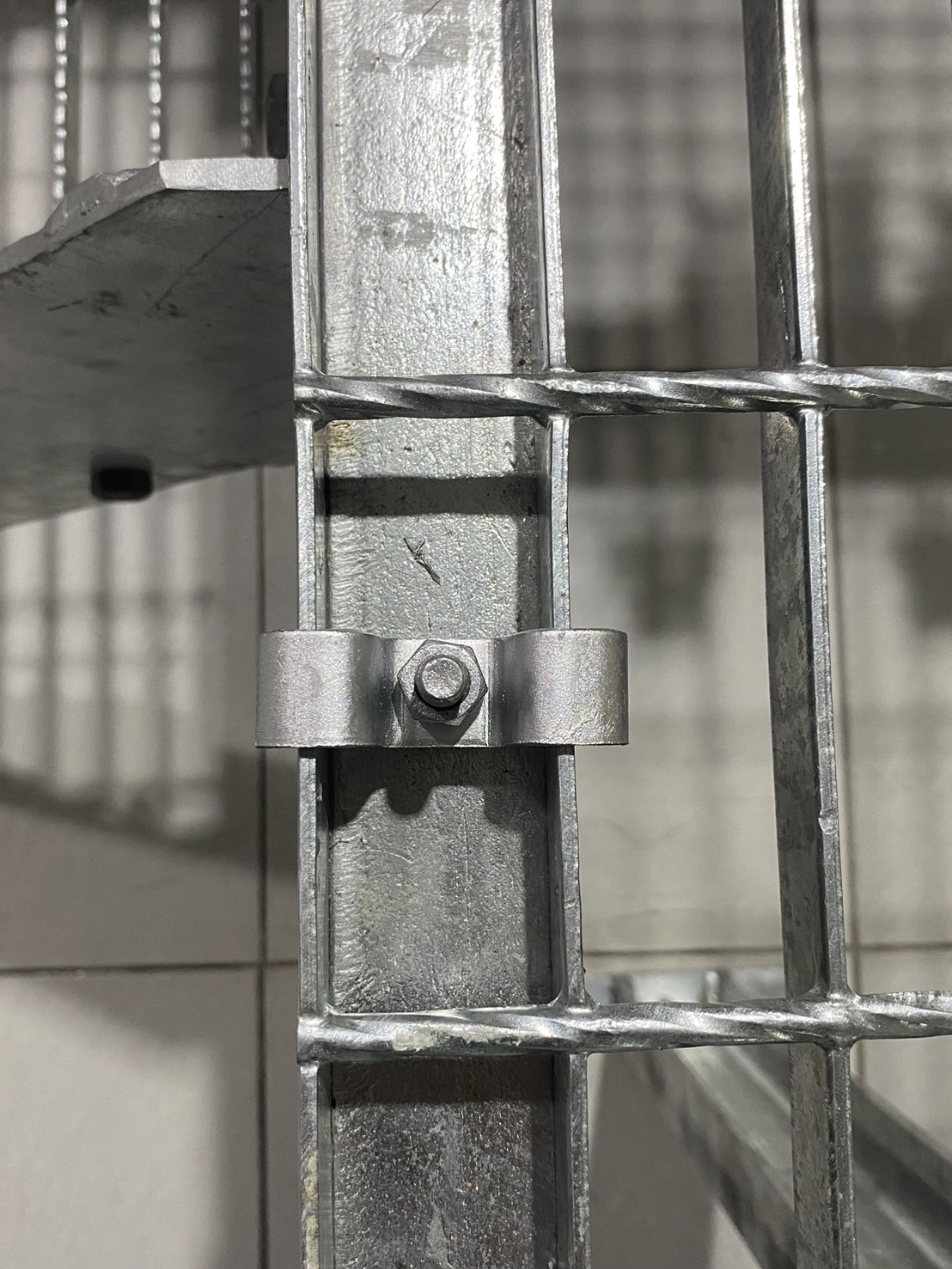

Clip Ref. SC 1 : A pressed steel saddle clamp constructed in such a way that fixing is possible from above.
Clip Ref. SC 2 : Stud Bolts are centered between two main bars and welded to supporting members. A pressed top clip engaging two main bearing bars is placed over Stud Bolt and then Hex nut is tightened.
TACK WELDING: It is the most positive fastening method. Grating is field welded to support.
